KTSS Series

  • 품목 Rotary Tablet Press M/C (정제기)
  • 항목Compact-sized Rotary Tablet Press Machine
  • 모델KT10SS | KT15SS | KT18SS | KT22SS
목록으로

상세정보

▶ Compact Design and Powerful Tablet Forming.
▶ Upper/Lower Pre-Compression Roller Unit as Standard.
▶ Quiet Running Through Precise Rail and Turn Table.
▶ Low Viblation by Strength Design of a Frame.
▶ The Convenient Operation Panel.(Touch Screen Control)
▶ The cover of the upper punch and the dust-collecting duct protect the machine from dust and prevent alien substances from adulterating.
▶ The middle board on the lower punch cartridge can be separated so that you can exchange the rack effectively and speedily.

ktmca_ps001.jpg ktmca_ps002.jpg


ktss_sam01.jpg ktss_sam02.jpg

ktss_sam04.jpg ktss_sam05.jpg ktss_sam06.jpg

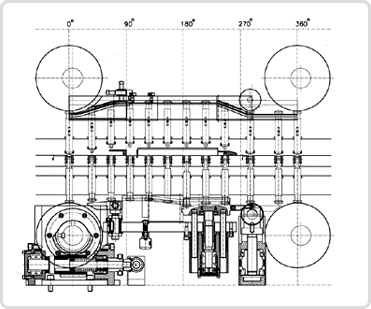

Mechanism Flow


Model No. KT10SS KT15SS KT18SS KT22SS
No. of station
 10
 15
 18
 22
Die table speed(r.p.m)
 10-50
 10-50
 10-60
 10-60
Tablets/hr.
 6,000-30,000 9,000-45,000
 10,800-64,800
 13,200-79,200
Type of tooling
 EU-D EU-D
 EU-B
 EU-BB
Max. tablet dia.(mm)
 25 25
 16
 13
Max. tablet Thickness(mm) 8 8
 8
 8
Max. pressure(ton)
 Pre 2 / Main 6 Pre 2 / Main 6
 Pre 2 / Main 6
 Pre 2 / Main 6
Max. filling depth(mm) 18 18
 18 18
Main motor(kW)
 3.7 3.7
 3.7
 3.7
Dimension(W×D×Hmm)
750×750×1,747 750×750×1,747
 750×750×1,747 750×750×1,747
Weight(kg) 1,700 1,700 1,700
 1,700

Technical specification can be rectify without prior notice.

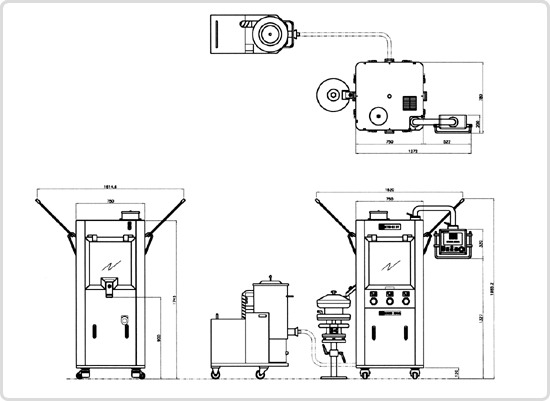

Dimension

Optional Items
op_loading.jpg op_powder.jpgop_dustcollector.jpg

Powder Loading Unit
Size(mm) : H385 × W300 × D300
Dust Collector
Size(mm) : H900 × W420 × D800
Deduster
Size(mm) : H850 × W400 × D400



CAM
CAM0305

Open Feeder

Powder Feeder
Mechanical Feeder
