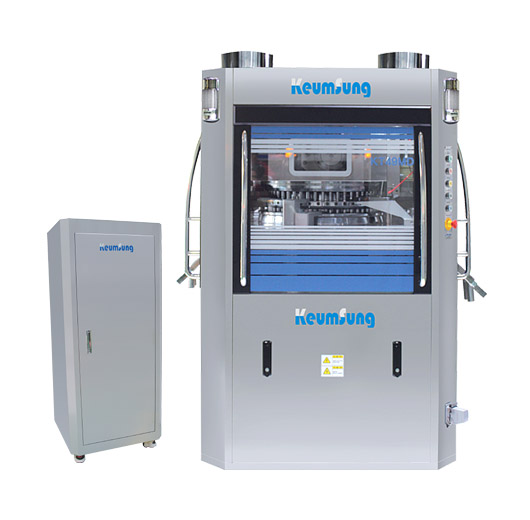

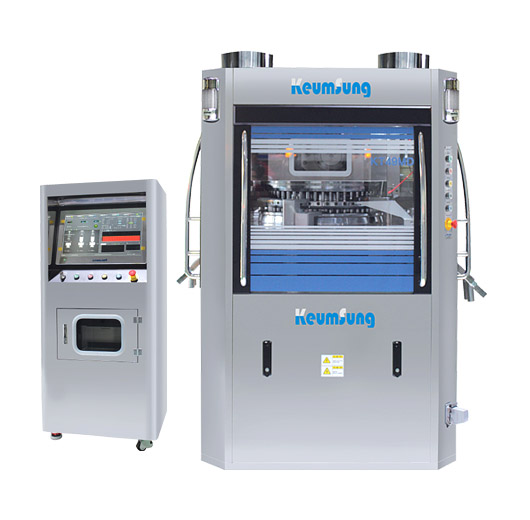

KTMD Series

  • 품목 Rotary Tablet Press M/C (정제기)
  • 항목Double - sided Rotary Tablet Press Machine
  • 모델KT41MD | KT49MD | KT59MD
목록으로

상세정보

▶ The press can be configured with one or 2 output chutes. Conventional tablets can be manufactured with double sided pre and main compression for highest outputs, or for double layer tablets by single tablet output. The changeover process is easily possible by the user with the most basic of training.
▶ Quiet running through precise rail and turn table.
▶ Low viblation by strength design of a frame.

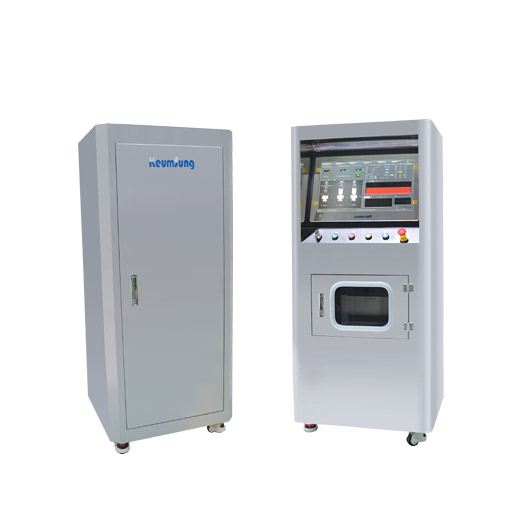

▶ The convenient operation panel. The functional switches and signals are integrated in 12" touch screen to make it possible that machine is convenient operated.
▶ The cover of the upper punch and the dust-collecting duct protect the machine from dust and prevent alien substances from adulterating.

ktmd_ps01.jpg ktmd_ps02.jpg ktmd_ps03.jpg


ktmd_sam01.jpg ktmd_sam02.jpg

ktmd_sam04.jpg ktmd_sam05.jpg ktmd_sam06.jpg

Operation Touch Screen
ktmd_ts01.jpg ktmd_ts02.jpg

Model No. KT41MD KT49MD KT59MD
No. of station 41
49 59
Die table speed(r.p.m)
10-60
10-70 10-70
Tablets/hr.
49,200-295,200 58,800-411,600 70,800-495,600
Type of tooling
EU-D EU-B EU-BB
Max. tablet dia.(mm)
25 16 13
Max. pressure(ton) Pre 5 / Main 10 Pre 5 / Main 10 Pre 5 / Main 10
Max. filling depth(mm)
18 18 18
Main motor(kW) 11 11 11
Dimension(W×D×Hmm)
1,200×1,25×1,900 1,200×1,250×1,900 1,200×1,250×1,900
Weight(kg)
5,700 5,700 5,700

Technical specification can be rectify without prior notice.

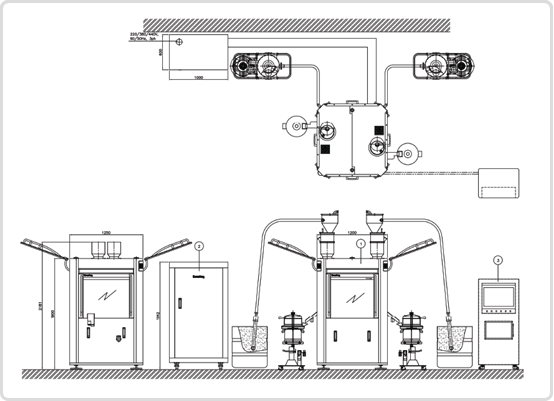

Dimension

Optional Items


Powder Loading Unit
Size(mm): H385×W300×D300


Dust Collector
Size(mm): H900×W420×D800


Deduster
Size(mm): H850×W400×D400



op_openfe.jpg op_powd.jpg op_powd2.jpg
Open Feeder
Powder Feeder
Mechanical Feeder
