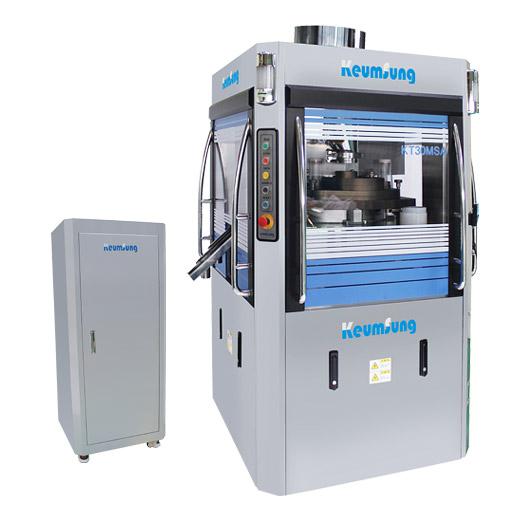

KTMS Series

  • 품목 Rotary Tablet Press M/C (정제기)
  • 항목Medium - sized Rotary Tablet Press Machine
  • 모델KT30MS | KT36MS | KT45MS
목록으로

상세정보

▶ Quiet Running Through Precise Rail and Turn Table.
▶ Low Viblation by Strength Design of a Frame.

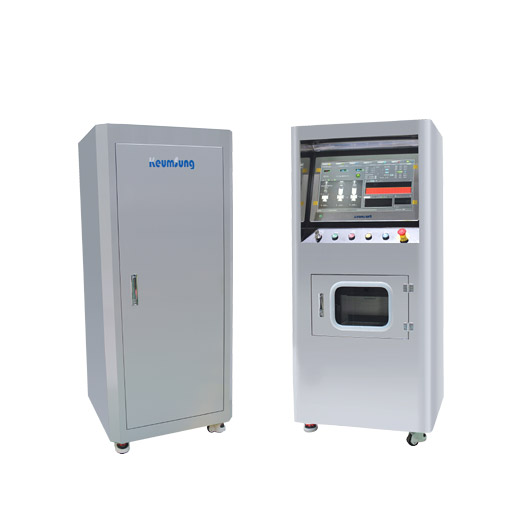

▶ The Convenient Operation Panel. The functional switches and signals are integrated in 10" Touch Screen to make it possible that machine is Convenient Operated.
▶ The middle agitating hopper and the direct-hitting feeder with three paddles provide any kinds of powder uniformly, so that the deviation of content can be minimized while loading.
▶ The middle board on the lower punch cartridge can be separated so that you can exchange the rack effectively and speedily.
▶ The cover of the upper punch and the dust-collecting duct protect the machine from dust and prevent alien substances from adulterating.

ktmca_ps001.jpg ktmca_ps002.jpg


ktms_sam01.jpg ktms_sam02.jpg

Operation Touch Screen
ktms_screen01.jpg ktms_screen02.jpg

Model No. KT30MS KT36MS KT45MS
No. of station 30 36 45
Die table speed(r.p.m)
10-60 10-70 10-70
Tablets/hr.
18,000-108,000 25,200-151,200 27,000-189,000
Type of tooling
EU-D EU-B EU-BB
Max. tablet dia.(mm)
25 16 13
Max. pressure(ton) Pre 3 / Main 10 Pre 3 / Main 10 Pre 3 / Main 10
Max. filling depth(mm)
18 18 18
Main motor(kW) 7.5 7.5 7.5
Dimension(W×D×Hmm)
950×980×1,670 950×980×1,670
950×980×1,670
Weight(kg)
3,500 3,500 3,500

Technical specification can be rectify without prior notice.

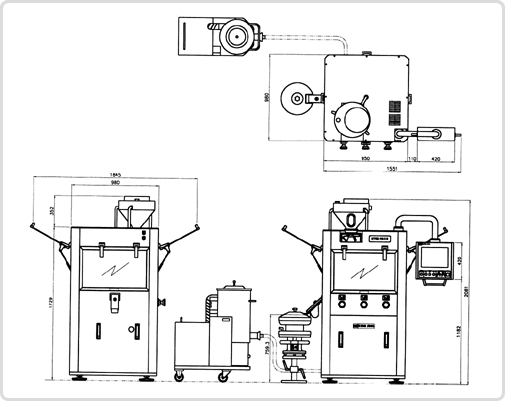

Dimension

Optional Items
op_loading.jpg op_powder.jpg

Powder Loading Unit
Size(mm): H385×W300×D300

Dust Collector
Size(mm): H900×W420×D800
Deduster
Size(mm): H850×W400×D400


op_open.jpg op_low.jpg
op_feeder001.jpg op_feeder002.jpg op_caf.jpg

Powder Feeder
Mechanical Feeder
CAF unit

Open Feeder
Low Track Part
