KTSS-2L Series

  • 품목 Rotary Tablet Press M/C (정제기)
  • 항목Compact-sized Rotary Tablet Press Machine (Single-2Layer)
  • 모델KT08SS-2L | KT10SS-2L | KT15SS-2L | KT18SS-2L | KT22SS-2L
목록으로

상세정보

▶ Compact design and powerful forming for single or 2-layer tablet.
▶ Feeder is a convenient structure for disassembly and assembly.
▶ Sample check possible structure of 1-layer tablets during production.
▶ Quiet and smooth driving by precision rails and turret.
▶ The functional switches and signals are integrated in 10" touch screen.
▶ Minimalist size suitable for lab or small quantity production.

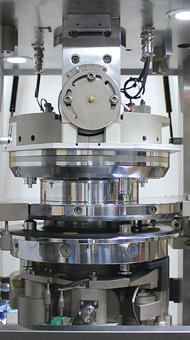

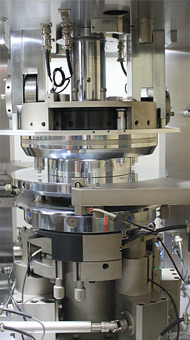

ktss2_sam01.jpg ktss2_sam02.jpg

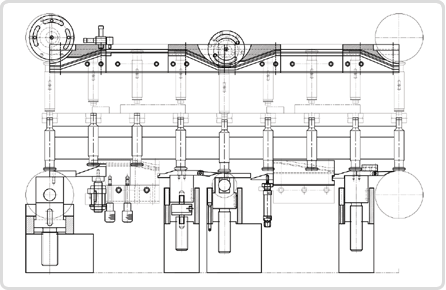

Mechanism Flow
ktss2l_dimension2.gif ktss_sam07.jpg

Model No. KT10SS-2L KT15SS-2L KT18SS-2L KT22SS-2L
No. of station
10
15
18
22
Die table speed(r.p.m)
5 - 30
5 - 30
5 - 30
5 - 30
Tablets/hr.
3,000-18,000
4,500-27,000
5,400-32,400
6,600-39,600
Type of tooling
EU-D
EU-D
EU-B
EU-BB
Max. tablet dia.(mm)
25
25 16 13
Max. tablet Thickness(mm) 8
8 8 8
Max. pressure(ton)
Pre 2 / Main 6
  Pre 2 / Main 6 Pre 2 / Main 6
Max. filling depth(mm) 18
18
18 18
Main motor(kW)
3.7
3.7 3.7 3.7
Dimension(W×D×Hmm)
750×930×1,692
750×930×1,692 750×930×1,692 750×930×1,692
Weight(kg) 1,400 1,400 1,400 1,400

Technical specification can be rectify without prior notice.

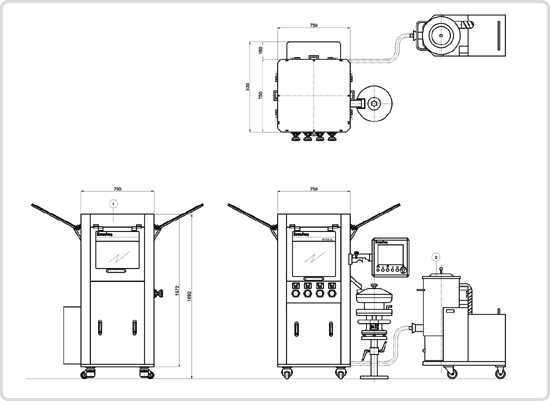

Dimension

Optional Items

Mechanical Feeder
open Feeder
Dust Collector
Deduster
