KC SERIES

  • 품목 Auto Coater (자동정제 코팅기)
  • 항목Auto Tablet Coating Machine

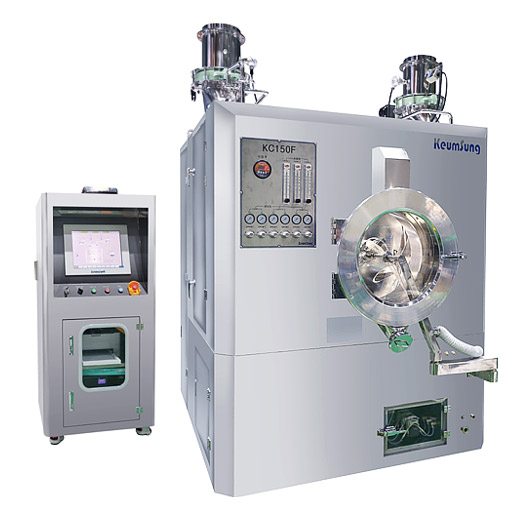

  • 모델KC80F | KC100F | KC130F | KC150F | KC170F
목록으로

상세정보

▶ Perfect flat coating on tablets by the main body of airtight chamber.
▶ Film, aqua and sugar coating in a machine.
▶ Easy control and monitoring using PLC by touch screen.
▶ Reduced loss of coating solution by using HVLP type spray gun with high transfer efficiency.
▶ External attachment of the spray gun arm for easy spray gun control and maintenance.
▶ Distribution and discharge of desired amounts due to full discharging by detachable suit.
▶ Extended space due to electric and air pressure parts installed inside the machine.
▶ The air supply part installed in the left of pan directly supplies hot wind to the surface of tablet and it passes through tablet tumbled by baffle and hole in the pan and goes out through dust collecting hood installed on the outer wall of pan, so no heat quantity is lost and optimum coating is possible in a short time.

ktmca_ps001.jpg ktmca_ps002.jpg



Dust Collector
Heat Exchanger
Solution Tanks
Air Control Knob


kc_su005.jpg kc_su006.jpg

Film Pumping Unit
Spray Gun Setting Unit
Product Discharge
Size(mm): H385×W300×D300



Model No. KC80F KC100F KC130F KC150F KC170F
Pan dia.(mm)
 770
 1050
 1300 1500
 1700
Working volume(ℓ) 44 105 225 350 560
Output capacity(kg) 10-25 30-80 80-150 150-250 200-350
Drive motor(kW)
1.5 2.2 3.7 5.5 7.5
Pan speed(r.p.m) 1-20 1-10 1-10 1-10 1-10
Dimension W(mm)
 1,150 1,500 1,600 1,800 1,980
  D(mm)
 1,370 1,520 1,730 1,900 2,250
  H(mm) 1,890 1,900 1,950 2,140 2,330
Weight(kg) 800 2,000 2,200 2,500 3,000
Technical specification can be rectify without prior notice.


Optional Items

Automatic Cleanling system
HMI Unit



Auto Damper
Flowmeters
WIP Unit
